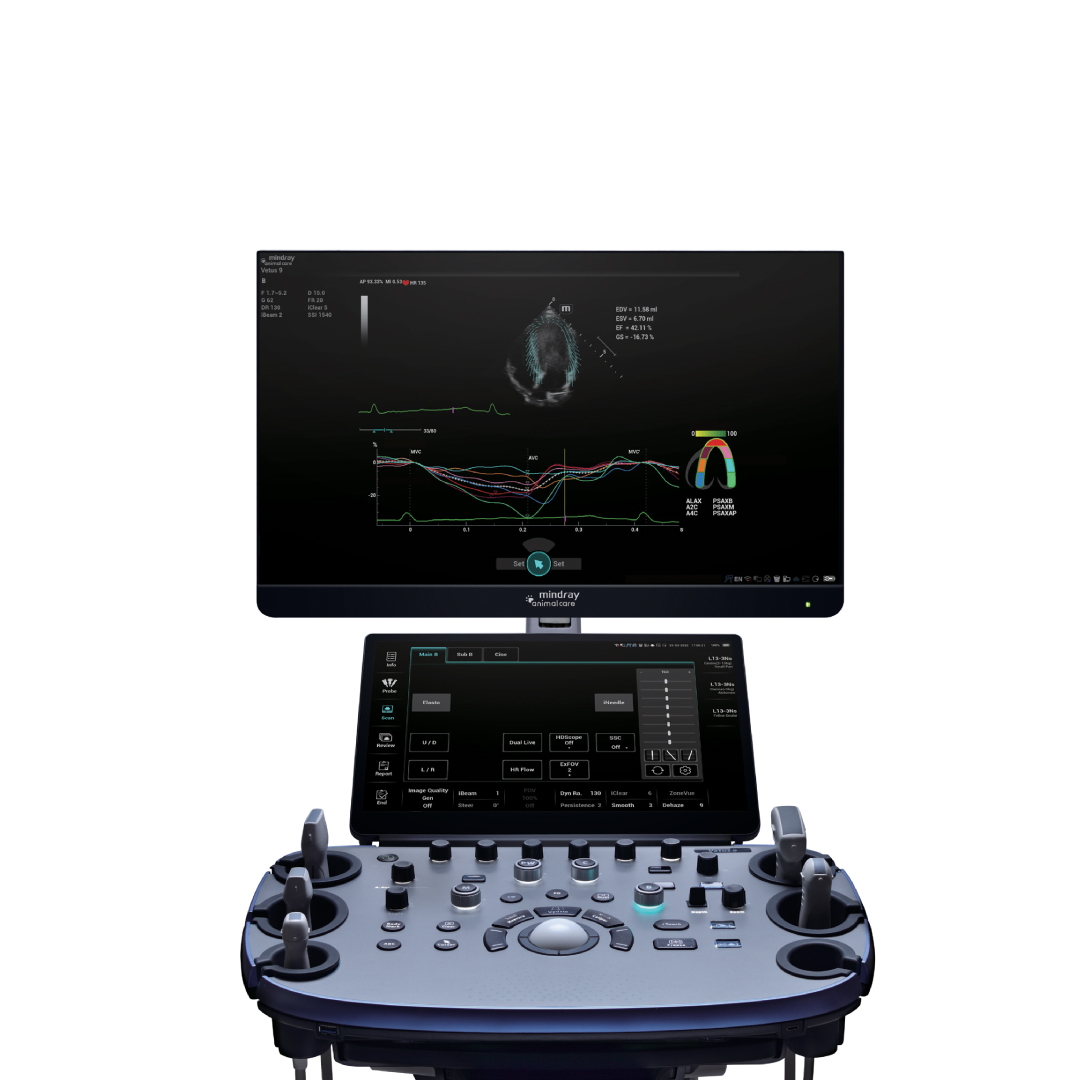

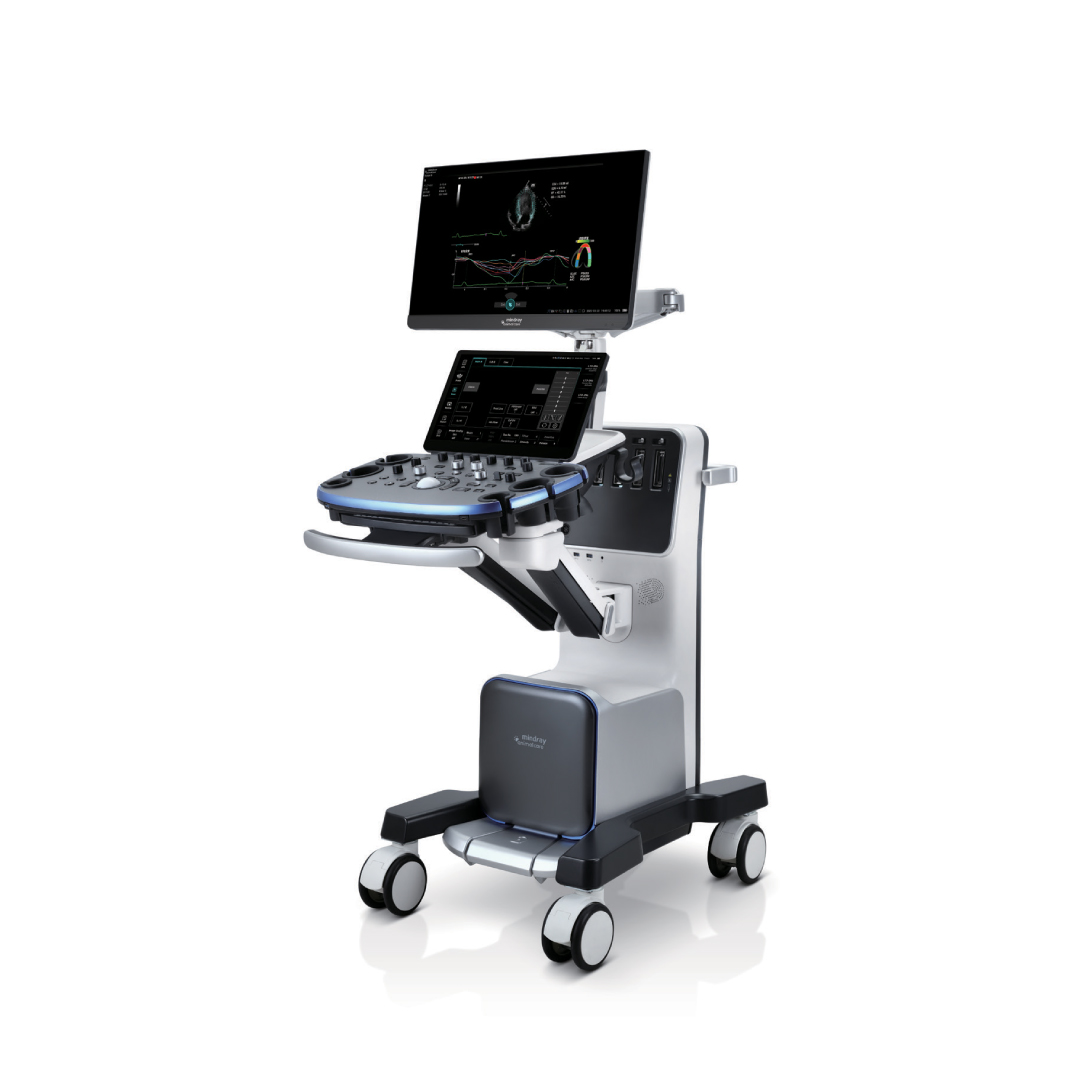

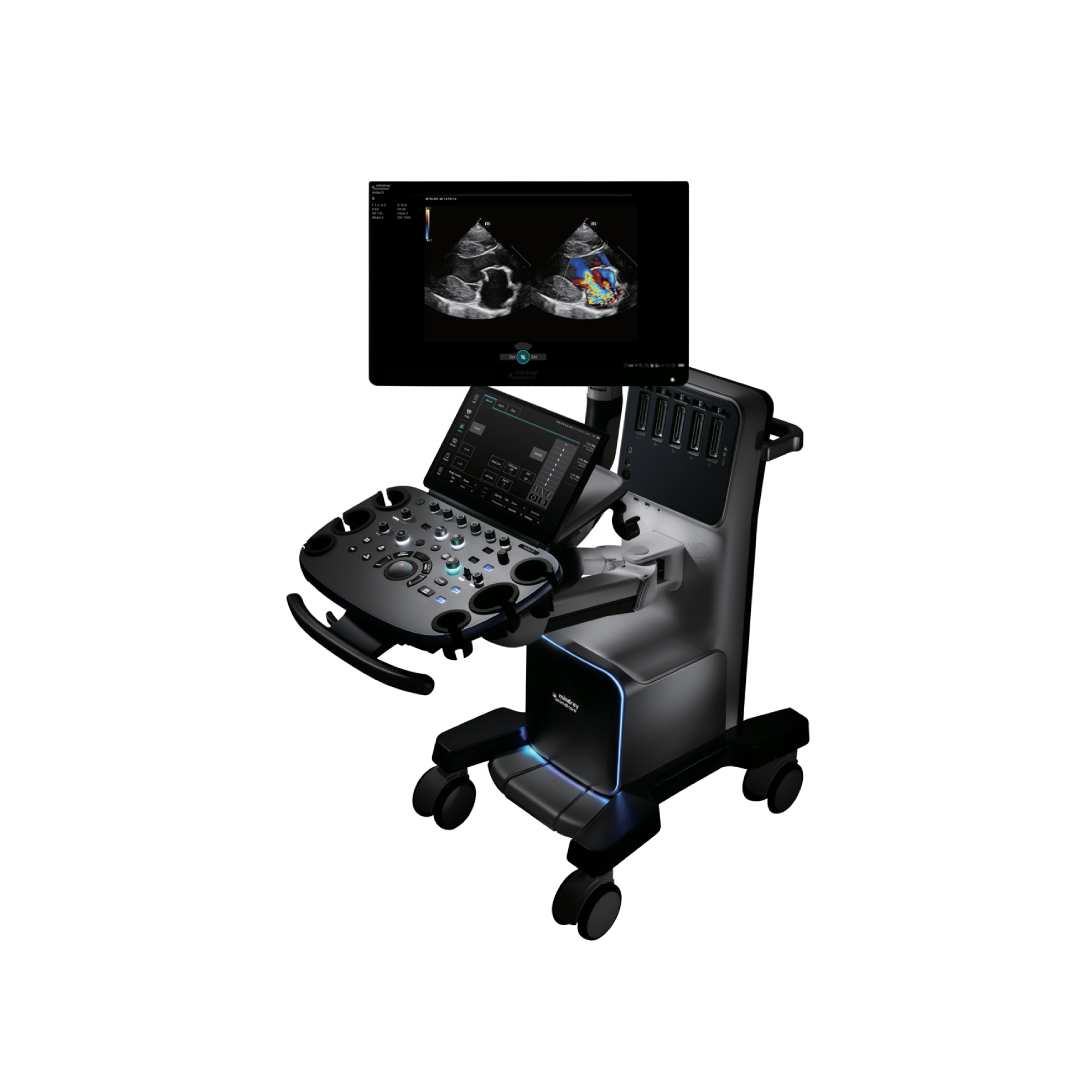

VETUS 9
(Premium Care for Animal)
Dedicated Animal Presets
- Professional ultrasound image presets according to different animals’ body characteristics
- Animal species are meticulously subdivided by weight, breed, and body size for highly precise diagnosis
- Veterinary recognized measurement formula presets with advanced user-defined modification1
Simple Veterinary Workflow2
- Transducers and the corresponding exam modes are displayed in the same interface, select or switch within 1 second3
- Recent 4 modes are presented at hand, one-key to switch the frequently-used exam mode4
- Super smart 515.6-inch full-HD touch screen with multi-touch for fast, intuitive operation
- iVocal™: Remotely control the system with voice commands for hands-free scanning
Premium Advanced Ultrasound Technology
- ZST+ (ZONE Sonography® Technology Plus) Platform: A revolutionary platform that transforms image formation from conventional beam-forming to channel data processing, providing:
- Zone Imaging: Captures real-time images of animal anatomy with exceptional clarity and speed (up to 10 times faster imaging).
- Dynamic Pixel Focusing: Ensures images are in perfect focus from the superficial skin to the deepest organs in real-time.
- Single Crystal and ComboWave transducers integrated with Mindray’s unique 3T technology, offering wider bandwidth and superior penetration for abdominal, cardiac, and difficult-to-image animals.
Powerful Intelligent Tools
- iTouch™: Auto image optimization solution with one touch, which intelligently optimizes the imaging quality.
- Smart Calc: Intelligent cardiac measurement package.
- iWorks™: Automated protocol system to standardize and simplify the workflow, which can reduce exam time and keystrokes.
- iScanHelper: Built-in expert guidance with anatomical illustrations and reference ultrasound images.
- iConsole™: Intelligent and clinical exam-specific control panel layout with adaptive E-ink keys.
Premium Professional Application Packages
Animal Abdomen and Small Parts Solutions:
- iScape real-time panoramic imaging
- iNeedle for enhanced visualization of the biopsy needle tip and shaft
- Sound Touch Elastography (STE): Real-time 2D Shear Wave Elastography for quantitative assessment of tissue stiffness with high frame rate (HiFR STE)
- UWN+ Contrast Imaging: Ultra-Wideband Non-linear Contrast Imaging for superior focal lesion diagnosis with enhanced perfusion sensitivity
- Micro Flow Enhancement: Advanced mode for even better visualization of tiny vessel perfusion.
- Smart Bladder for automatic volume calculation
Animal Cardiac Solutions：
- CW/PW automatic tracking & analysis
- Free Xros M for anatomical M mode
- Free Xros CM for curved anatomical M mode
- Tissue Doppler Imaging (supporting 4 modes: TVI, TEI, TVD, TVM)
- Tissue Doppler Imaging with Quantitative Analysis (TDI QA): Quantitative analysis of myocardial movement and synchronization.
- Tissue Tracking with Quantitative Analysis (TT QA): Angle-independent evaluation of myocardial movement and deformation (strain/strain rate) for comprehensive cardiology assessment.
- AutoEF: Automatic Ejection Fraction calculation.
- LVO Contrast Imaging (Left Ventricle Opacification)
